Switch Frog Detail Page © Details  West

SF-926 Switch Frog Code 83 #8 Manganese Insert Type (White Bronze) W/Plastic Railbars & Pewter Guard Rails 1 Set $8.95

SF-927 Switch Frog Code 83 #9 Manganese Insert Type (White Bronze) W/Plastic Railbars & Pewter Guard Rails 1 Set $8.95

SF-928 Switch Frog Code 70 Manganese Insert Type #8 (White Bronze) W/Plastic Railbars & Pewter Guard Rails 1 Set $8.95

SF-929 Switch Frog Code 70 #8 (White Bronze) W/Plastic Railbars & Pewter Guard Rails 1 Set $8.95

SF-930 Switch Frog & Points Code 55 #8 (White Bronze) W/Pewter Guard Rails & Railbars 1 Set $15.75

RB-931 Railbars, ABS Plastic Code 83, 6 & 4 Bolt, 36 Railbar Pieces $2.50

RB-932 Railbars, Brass, Code 83, 6 & 4 Bolt, 12 Railbar Pieces $3.75

RB-933 Railbars, ABS Plastic Code 70, 6 & 4 Bolt, 36 Railbar Pieces $2.50

RB-934 Railbars, Brass, Code 70, 6 & 4 Bolt, 12 Railbar Pieces $3.75

RB-935 Railbars, Pewter Code 55, 4 Bolt, 24 Railbar Pieces $2.50

SF-936 Switch Frog & Points, Code 55 #7 (White Bronze) W/Pewter Guard Rails & Railbars 1 Set $15.75

SF-937 Switch Frog Code 70 #7 (White Bronze) W/Plastic Railbars & Pewter Guard Rails 1 Set $8.95

SF-949 Switch Frog Code 83, #6 (White Bronze) W/Details 1 Set $14.95

SF-950 Switch Frog Code 70, #6 (White Bronze) W/Details 1 Set $14.95

SF-951 Switch Frog Code 55, #6 W/Points ( White Bronze) W/Details 1 Set $17.75

SF-953 Switch Frog Code 83, #5 (White Bronze) W/Details 1 Set $14.95

SF-954 Switch Frog Code 70, #5 (White Bronze) W/Details 1 Set $14.95

SF-955 Switch Frog Code 55, #5 W/Points (White Bronze) W/Details 1 Set $17.75

SF-956 Switch Frog Code 70 Self-Guarded #6(White Bronze) W/Plastic Railbars 1 Set $15.95

Some frog samples and parts associated with each....

Click on picture to enlarge

frogs_railbars 005.jpg (581654 bytes) SF-926 Switch Frog Code 83 #8 Manganese Insert Set

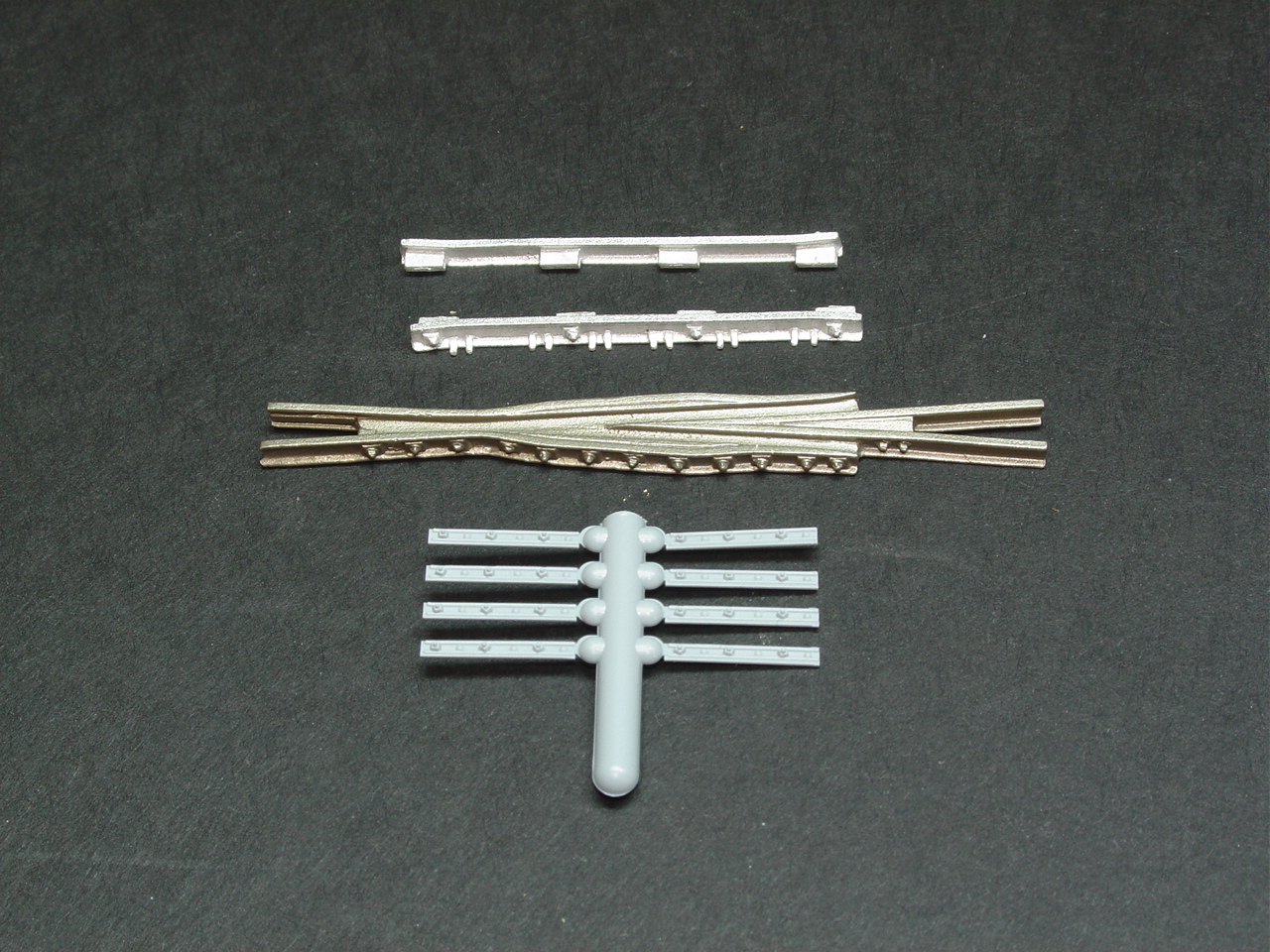

frogs_railbars 006.jpg (587326 bytes) SF-927 Switch Frog Code 83 #9 Manganese Insert Set

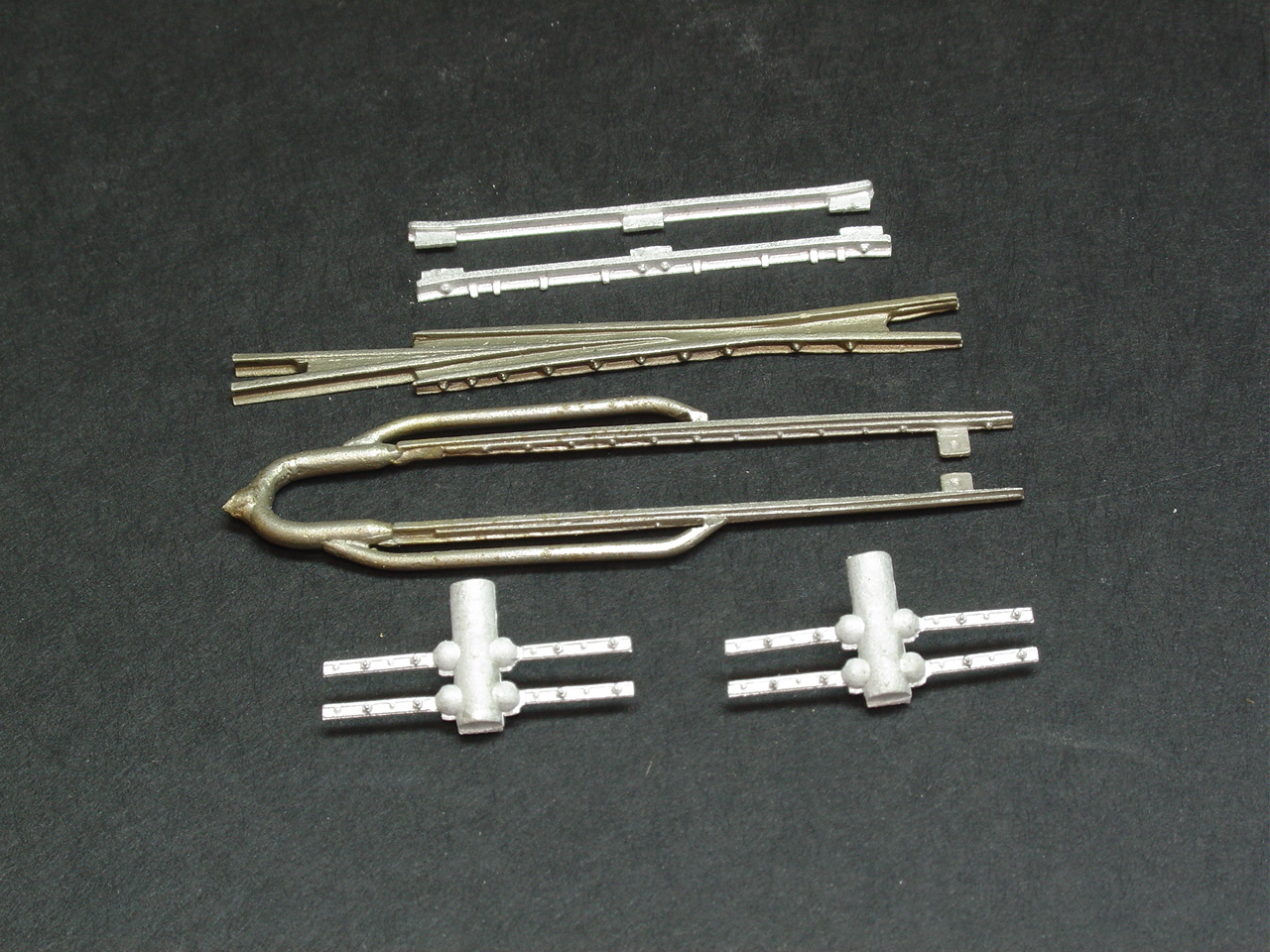

frogs_railbars 007.jpg (582567 bytes) SF-930 Switch Frog & Points Set Code 55 #8

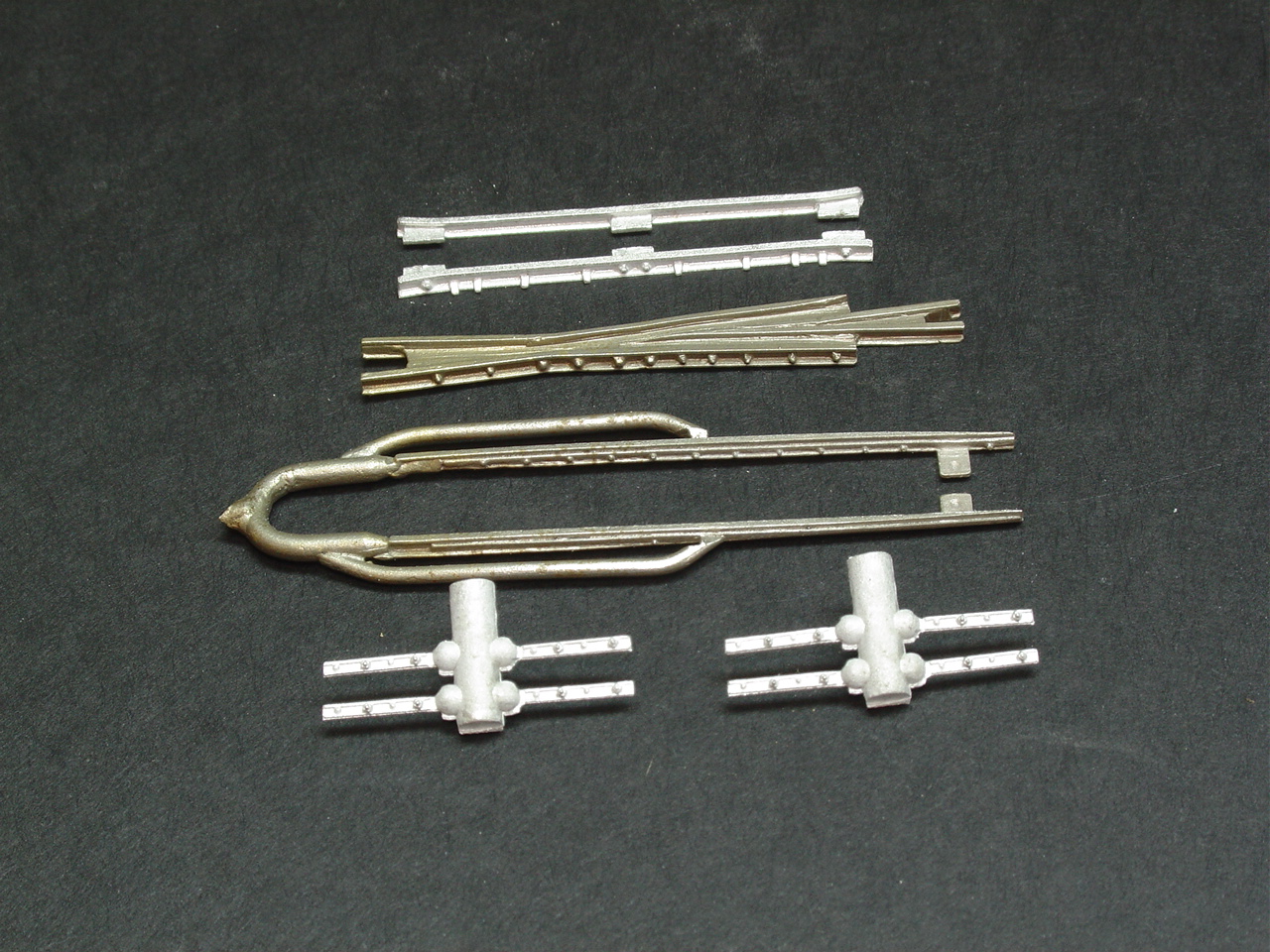

frogs_railbars 008.jpg (583086 bytes) SF-936 Switch Frog & Points Set Code 55 #7

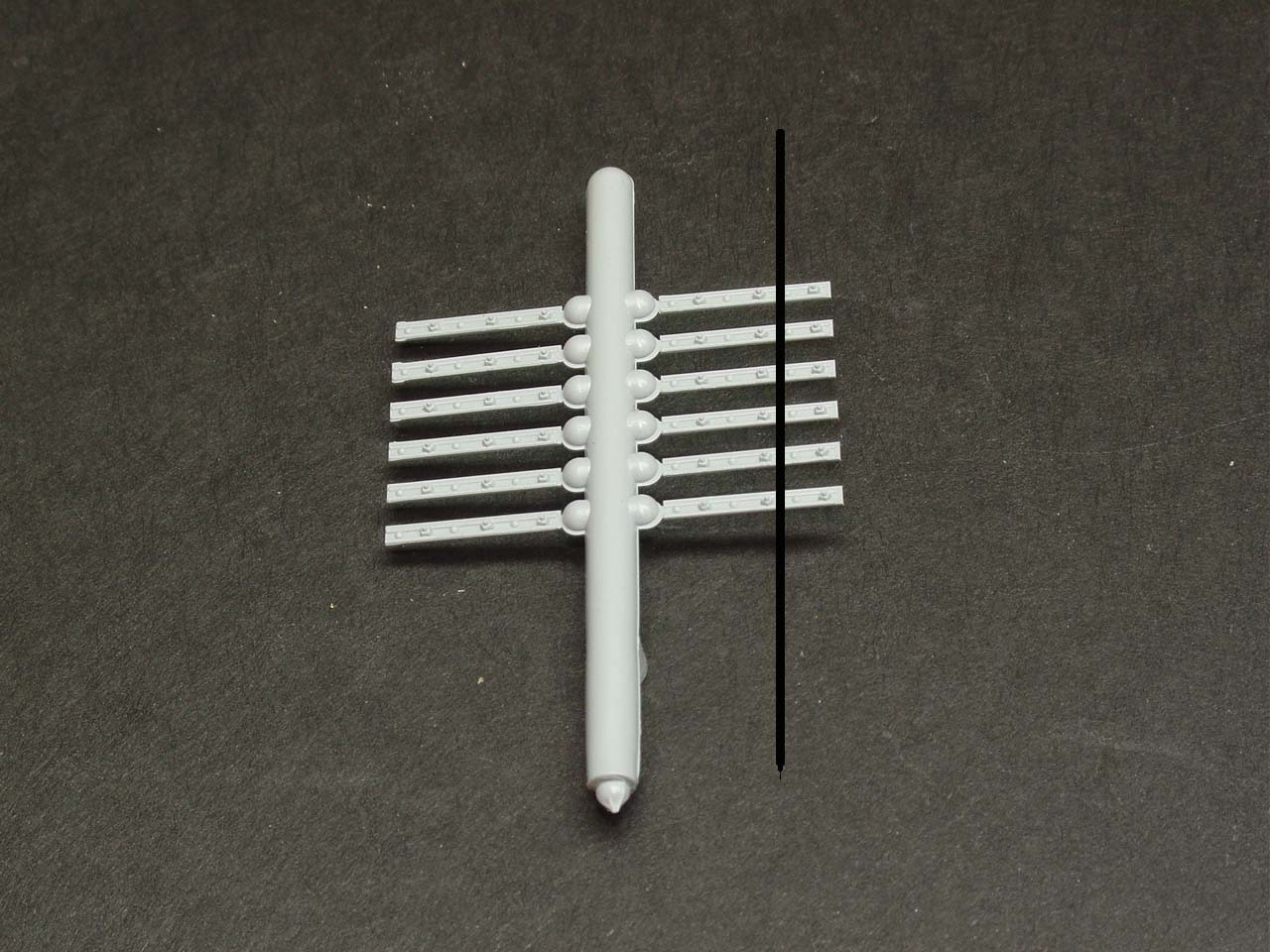

frogs_railbars 009.jpg (166543 bytes) RB-931 Railbars, ABS Plastic Code 83. Line shown is to cut for 4 bolt version. RB-933 Code 70 Similar.

frogs_railbars 010.jpg (191906 bytes) RB-932 Railbars, Brass Code 83. Line shown is to cut for 4 bolt version. RB-934 Code 70 similar.

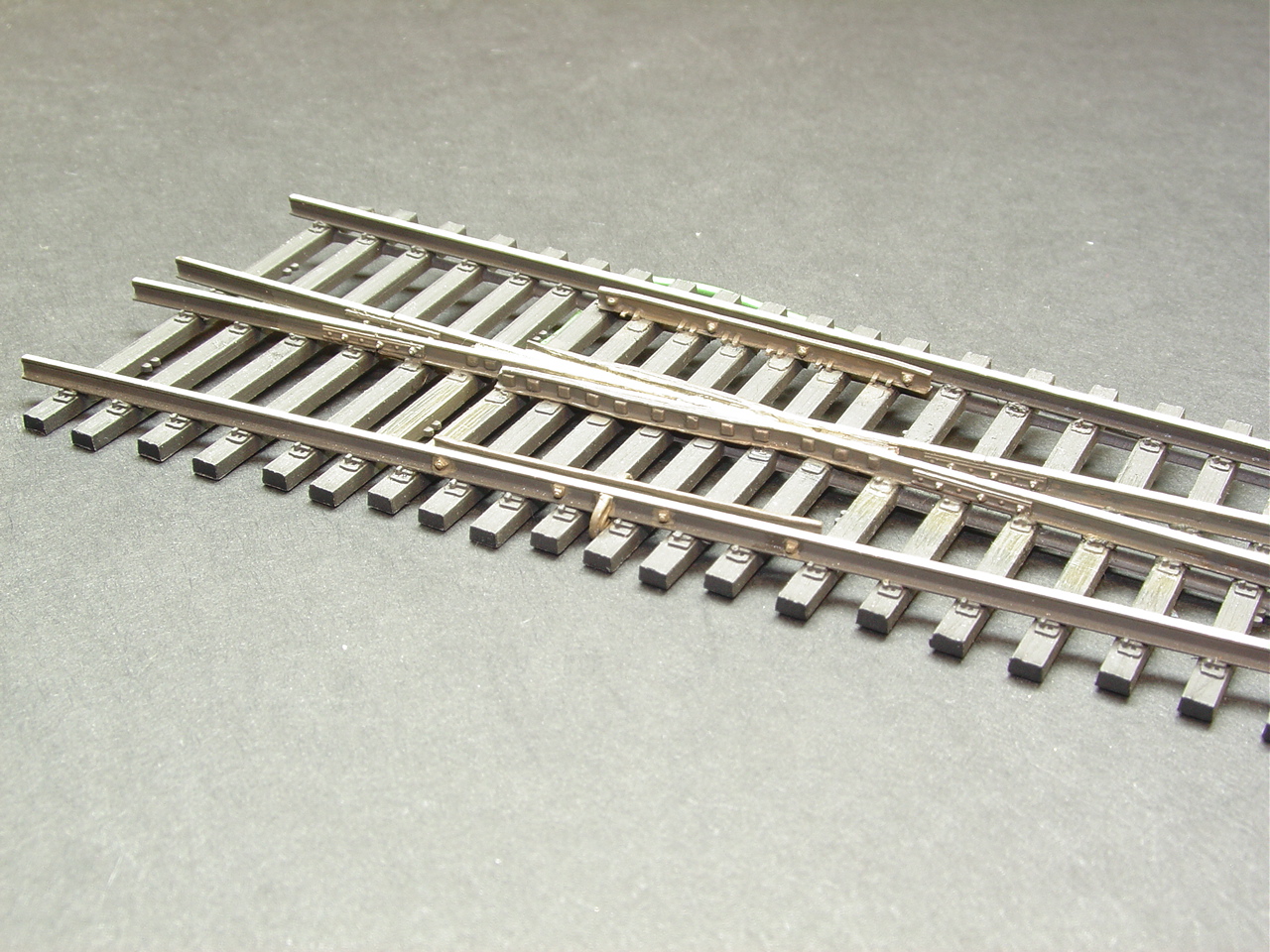

code 83 frog.jpg (594518 bytes) A Central Valley Switch Kit mounted with a #9 Manganese Frog Insert & new guard rails and details installed and ready to operate. Please note, additional details added in frog sets not shown in the parts photos are guard rail bolts and guard rail anchors. This switch is the most realistic and prototypically accurate switch on the HO market! Can't get better than this.

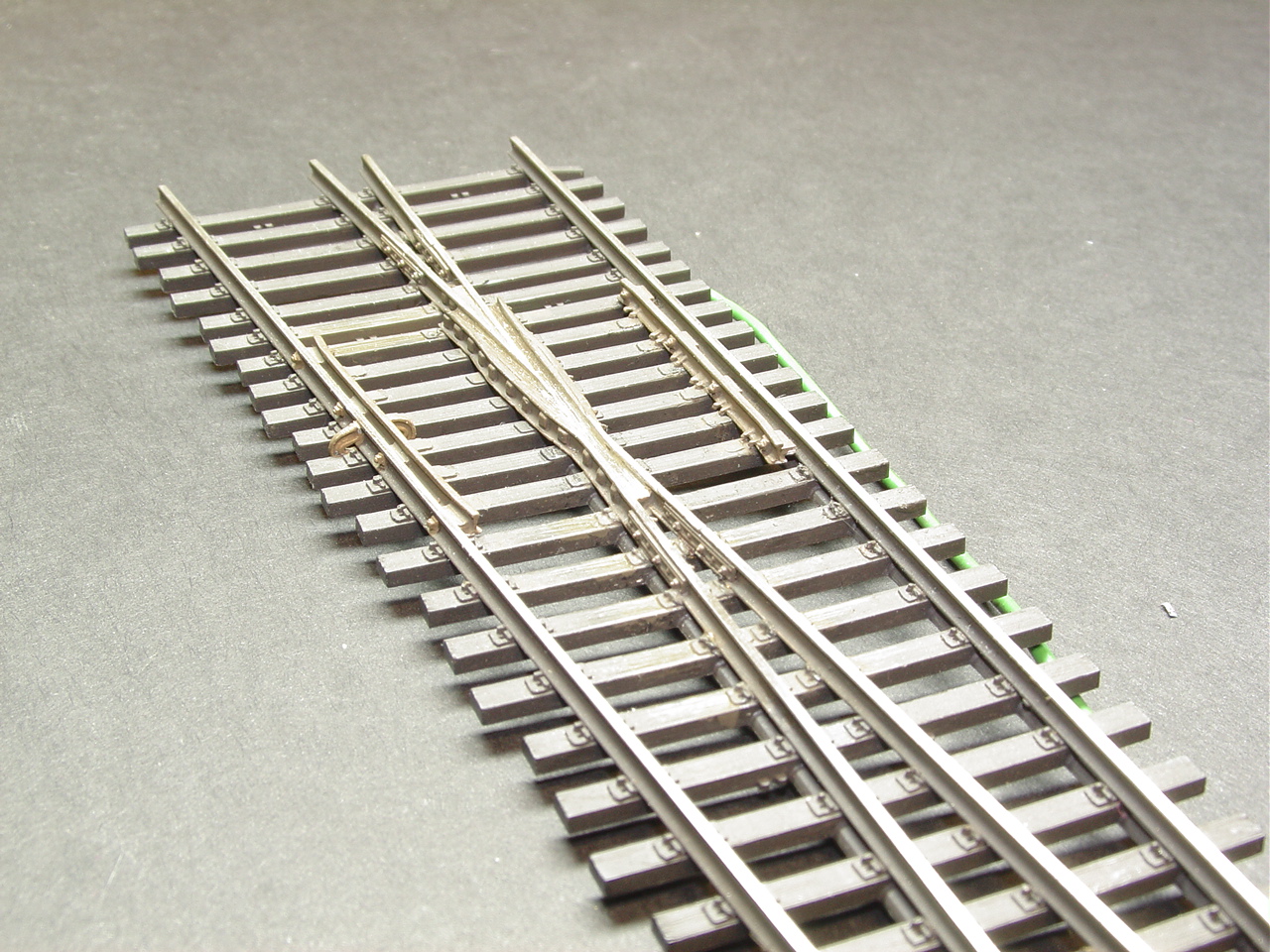

code 83 frog_1.jpg (614580 bytes) Another View! Wheels with P-88 and P-110 work quite well. Frog rail spacing matches NMRA© standards.

code 83 frog_2.jpg (588807 bytes) Single green wire coming out from the bottom is the power route feeder that connects to a set of contacts on Tortoise™ switch machine. Frog can be DCC friendly by insulating it by gluing the plastic railbars and inserting a small piece of .010" thick styrene between the butted rails.

frogs_railbars 004.jpg (571516 bytes) Entire Central Valley Switch detailed and with a Details West #SM-903 Switch Motor, #RB-919 Railbraces detail added.

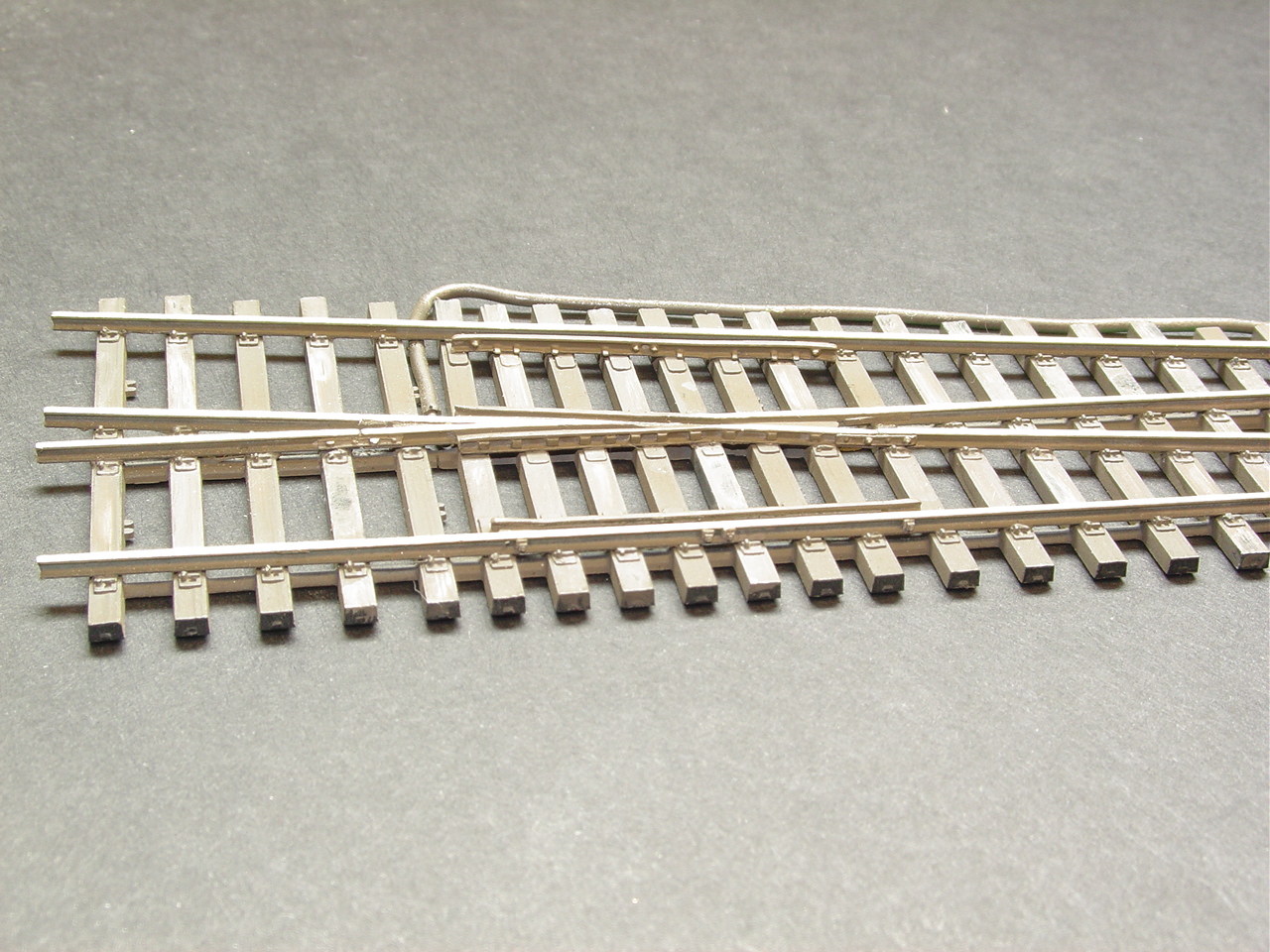

frogs_railbars 024.jpg (587123 bytes) Code 55 frog, guard rails with details added on Central Valley Switch Ties.

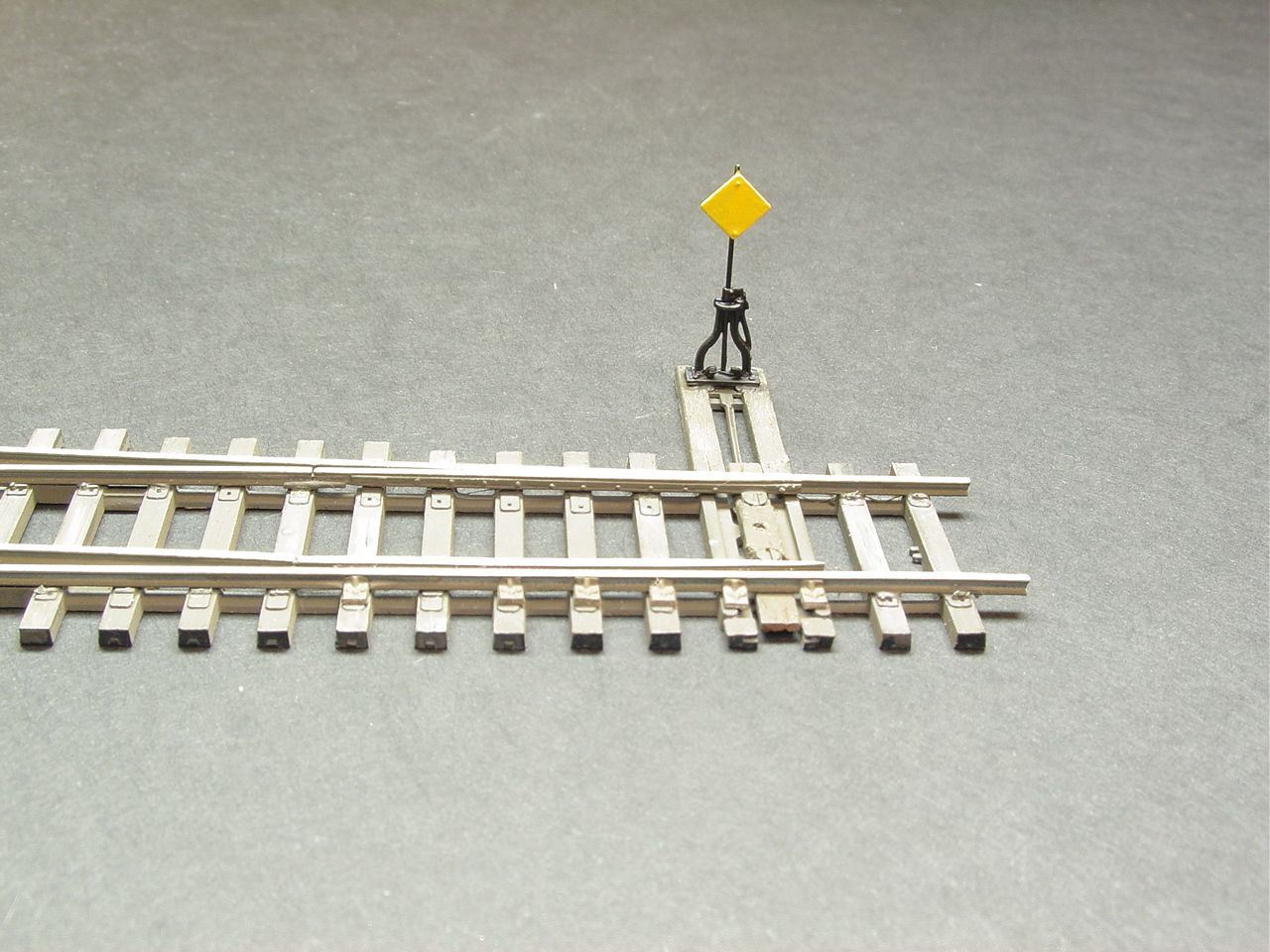

frogs_railbars 025.jpg (595620 bytes) Code 55 points, with RB-920 rail brace added and SS-914 switch stand.

code 55 points_1.jpg (590016 bytes) Code 55 points, with SS-914 switch stand. Use 0-90 flathead screws to mount to wood throw-bar, delrin or nylon would work as well.

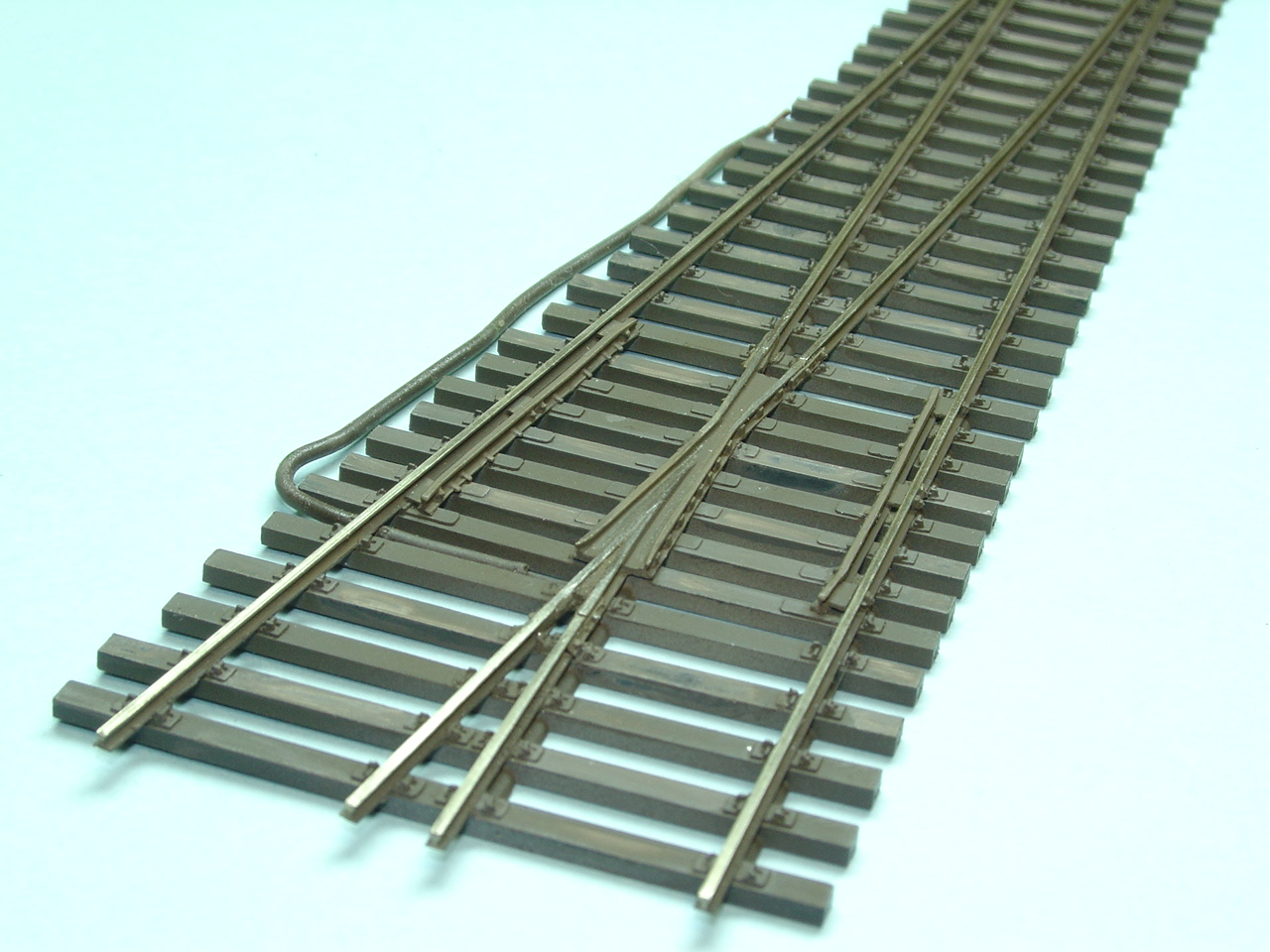

code 55 front.jpg (521089 bytes) Code 55 switch looking at top end.
