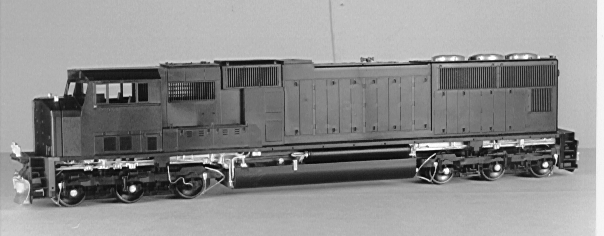

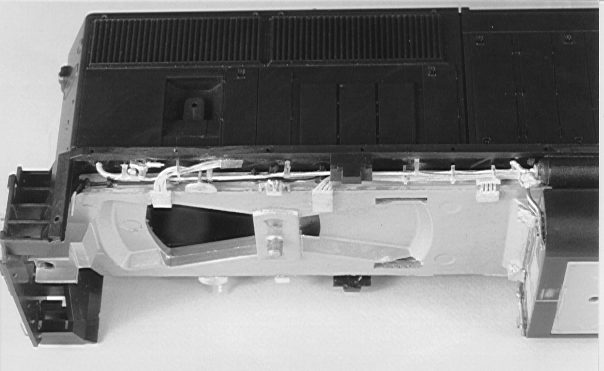

wpe01607.gif (114923 bytes) The left side view of BNSF SD75I with sets DS-297 and AU-300 installed. New DL-301 ditch lights w/lenses also installed. (Click photo to enlarge) More Detail description below.

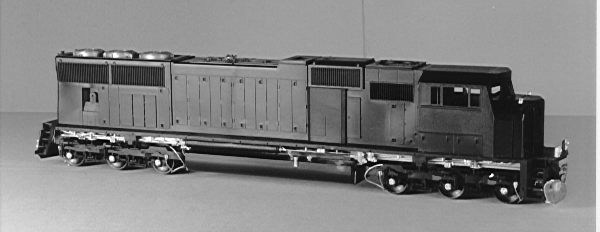

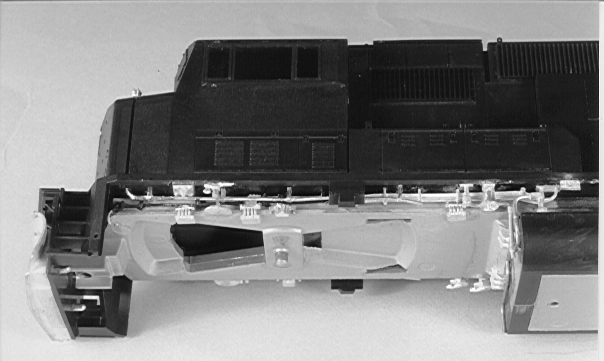

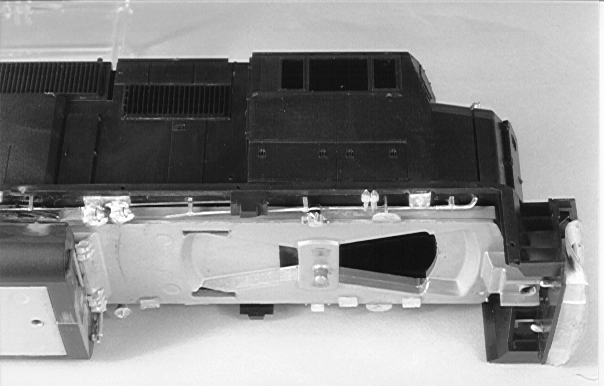

wpe52618.gif (169500 bytes) The left side view of BNSF SD75I close-up. (Click photo to enlarge)

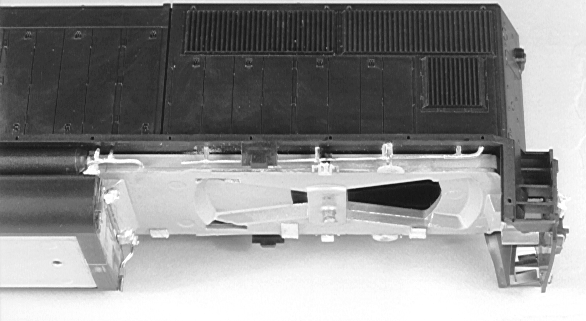

wpe12125.gif (146559 bytes) Rear left side view of BNSF SD75I (Click photo to enlarge)

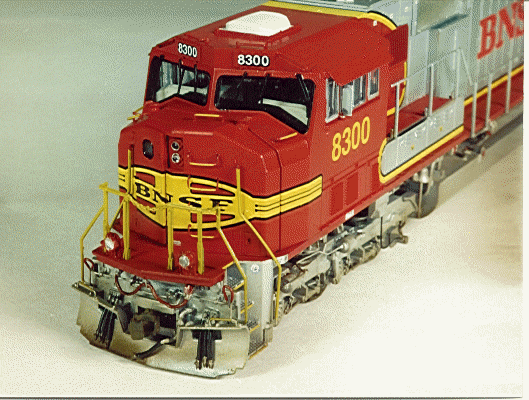

wpe07616.gif (180417 bytes) Right front view of BNSF SD75I (Click photo to enlarge)


wpe03925.gif (169111 bytes) Rear right side view of BNSF SD75I (Click photo to enlarge)

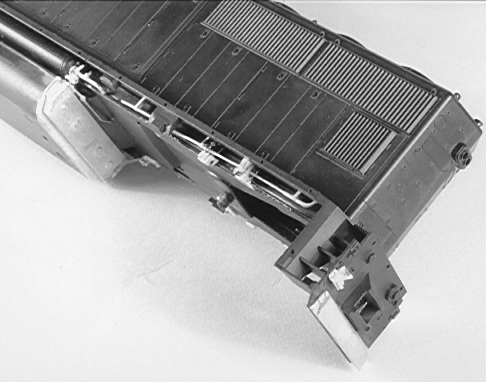

wpe78970.gif (156694 bytes) Rear view of CN SD70/75I (Click photo to enlarge)

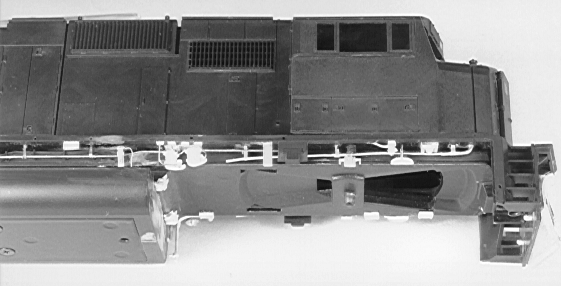

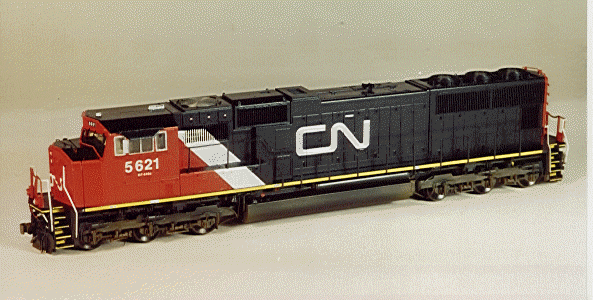

wpe53324.gif (124679 bytes) Right front view of CN SD70I (Click photo to enlarge)

DS-296 Detail Kit Contains the Following Parts:

Sander Brackets

Air Tank Detail Set

Fuel Tank Detail Set

Fuel Tank Drain Pipes (DP-305)

"Salem" Air Filters with Mount

Fuel Tank Brackets

Underframe Bell

Brake Vent Regulator Valve

Spare Knuckles

Various Pipe Details

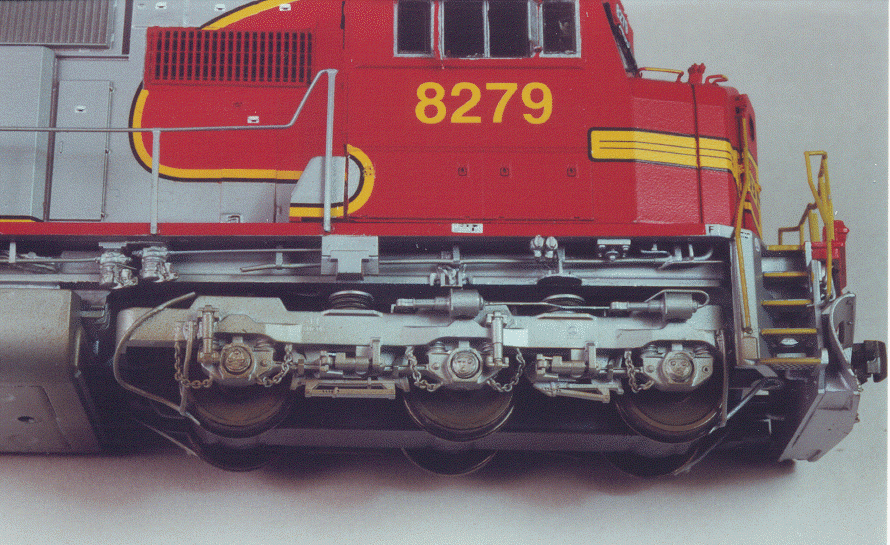

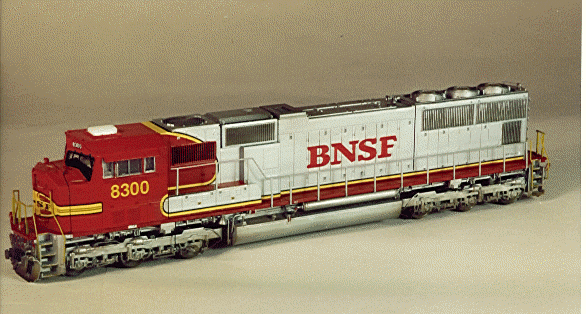

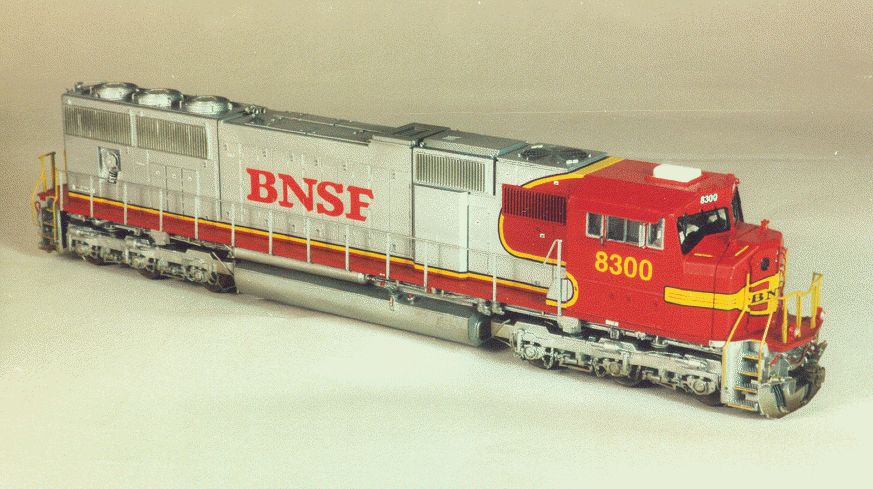

wpe70489.gif (218399 bytes) Athearn SD75I BNSF super detailed with the Following Items:

DS-297 Detail Set for Athearn Genesis SD70, SD75I BNSF

DS-297 Contains the Following Parts:

Snow Plow (PL-303)

Fuel Tank Bracket

Sander Pipe Details For Trucks

Air Tank Details

"Salem" Air Filters W/Mount

Brake-Vent Regulators (BV-245)

Fuel Tank Details

Emergency Fuel Shut-Off Switch Box

Nose Sandfillers

Underframe Bell (BE-127)

Various Underframe Details

Air Horn K-3 (AH-253)

Spare Knuckles and Holders (SK-196)

Additional Parts Added:

AU-300 Auxiliary Detail Set

AU-300 Auxiliary Set Contains the Following Parts:

Under-walkway Sander Pipe Lines

Traction Motor Cable Set

Truck Sideframe Cushion Pad

Additional Parts Added:

MU-266 MU Hose 3 Cluster Type

MU-236 MU Cable With Double Ended Receptacle

DL-301 Ditch Light, Top Platform Mount With lenses

AH-302 Air Hose, Locomotive Drop Elbow Type

*Decals by Microscale, etched steps by A-line, dome antenna by Hi-Tech, paint by Scalecoat II.

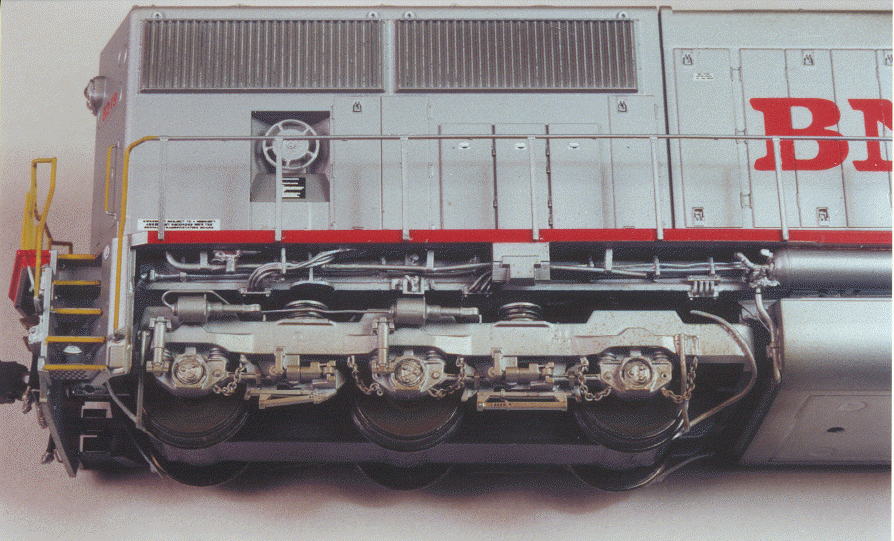

wpe87604.gif (309979 bytes) Some people have asked me what I did to create the HTCR phase II truck sideframe on this model. The Athearn truck sideframe was modified using the BC-244 bearing cap detail (as shown) and the truck strut was then repositioned to the proper location. Any holes left on the sideframe after the repositioning, were filled with putty and sanded smooth. As you can see, the right front truck has the strut in a different position than the left rear truck; the same is also true for the other side. The chain was added by bending a piece of .010" brass wire forming a hook, then drilling a #79 hole at the specified location, as shown. The chain was then hooked on. Finally, using a pair of tweezers, the loop was closed..

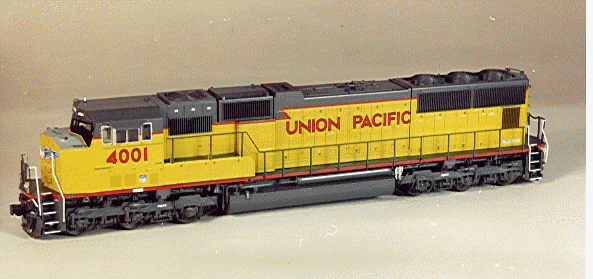

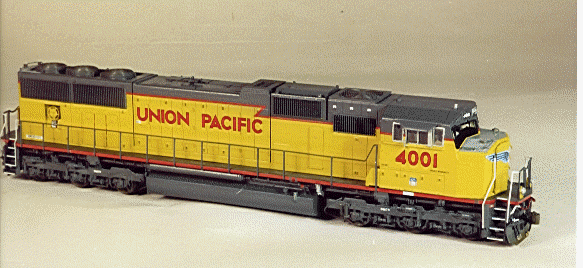

wpe81784.gif (79673 bytes) Athearn UP SD70M version super detailed with the Following Items:

DS-299 Detail Set for Athearn SD70M UP

DS-299 Contains the Following Parts:

Snow Plow (PL-303)

Fuel Tank Details

Air Tank Details

Sander Pipe Details for Trucks

Fuel Tank Brackets

Air Filter Details W/Mounts

Brake-Vent Regulators (BV-245)

Various Underframe Parts

Air Horn P-3 (AH-175)

Spare Knuckle and Holder (SK-196)

Additional Parts Added:

AU-300 Auxiliary Detail Set

AU-300 Auxiliary Detail Set Contains the Following Parts:

Under-Walkway Sander Pipe Lines

Traction Motor Cable Set

Truck Sideframe Cushion Pad

Additional Parts Added:

MU-266 MU Cable 3 Cluster Type (Pilot)

RA-276 Radio Antenna ("Can" Type)

MU-236 MU Cable W/Double Ended Receptacle

DL-301 Ditch Lights, Late Style With Lenses & Bulbs

AH-302 Air Hose Locomotive Drop Elbow Style

*Decals by Microscale, etched steps by A-line, paint by Scalecoat II

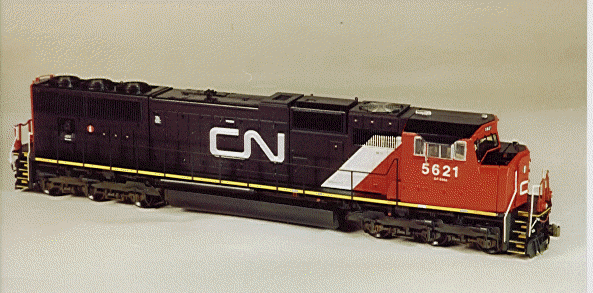

wpe60778.gif (75414 bytes) Canadian National SD70I version detailed with the Following Detail Items:

DS-298 Detail Set for the Athearn SD70/75I Canadian National

DS-298 Contains the Following Parts:

Snow Plow (PL-257)

Sander Pipe Details For Trucks

Fuel Tank Details

Air Filter Details W/Mount

Fuel Tank Brackets

Spare Knuckle W/Holders

Rear Pilot Detail

Retention Tank for Fuel Tank

Fuel Tank Details

Emergency Fuel Shut-Off Detail

Various Underframe Details

Air Horn K-3 (All Forward) (AH-254)

Additional Parts Added:

AU-300 Auxiliary Detail Set

DL-228 Ditch Light Top Pilot Mount W/Lenses & Bulbs

MU-236 MU Cable With Receptacles

MU-266 MU Cables 3 Cluster Type (Pilot)

RA-274,275 Radio Antennas (Long Sinclair & Short Sinclair)

Nice, eh!

*Decals by Microscale, etch steps by A-line, paint by Scalecoat and Testors.


gpsdomes.jpg (244399 bytes)UP Configuration Small Round GPS Dome (Matric Co.) GP-320 MSRP Pr. $1.95 and Square Angled Edge GPS Dome, Many Roads.... GP-321 MSRP $1.50

A Link for prototype SD70 photos......
